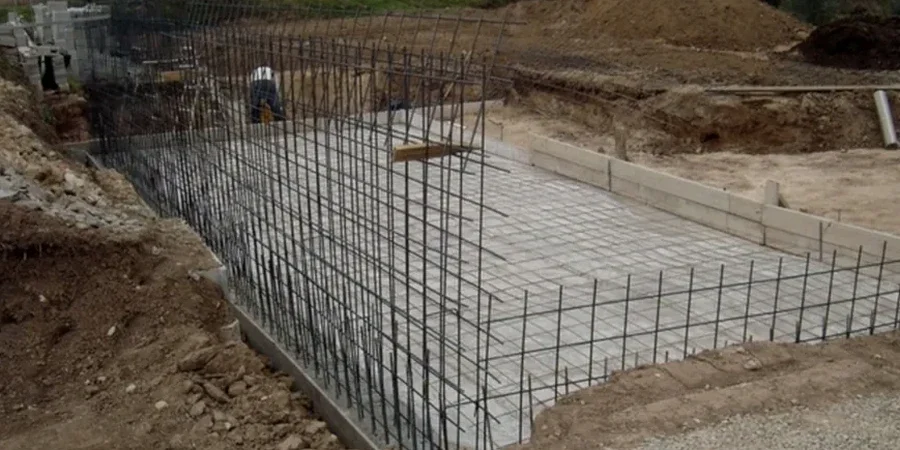

Shallow Foundation Design in Laredo, TX

A three-story medical office building off McPherson Road had a problem. The initial geotech report from a generalist firm recommended a standard spread footing at minus 4 feet, but they missed the pocket of high-plasticity Beaumont clay that swells 3 inches between dry and wet seasons. Our team re-ran the consolidation and Atterberg limits, adjusted the bearing depth to 6 feet below grade, and specified a moisture-conditioned select fill to break the capillary rise. Shallow foundation design in Laredo isn't about picking a textbook bearing capacity. It's about knowing that the Rio Grande alluvium shifts across town, that the terrace deposits near Lake Casa Blanca behave differently from the fill in the Heights, and that the IBC Chapter 18 combined with the City of Laredo amendments demands a site-specific approach. We handle the full package: field exploration with SPT drilling, lab strength testing, and final foundation recommendations stamped by a Texas-licensed engineer.

Most foundation problems in Laredo trace back to ignoring the active zone in expansive clay. Six feet of depth solves what two feet of concrete cannot.

Our service areas

Methodology and scope

The soil profile east of I-35 near the river is nothing like what you find up toward Mines Road. The floodplain deposits are loose silty sands with lenses of fat clay, while the upland areas sit on caliche and weathered shale that can carry 4,000 psf without breaking a sweat. A shallow foundation in Laredo has to handle both: the settlement-sensitive clays and the erosion-prone sands. Our design process starts by mapping the site against the USGS surficial geology and then confirming the layering with borings logged under ASTM D2487. We compute settlement using Schmertmann's method for granular soils and Casagrande's approach for clays, and we always check the differential movement between columns. For lightly loaded structures on decent ground, a continuous strip footing works fine. For irregular column grids on variable fill, we switch to a rigid mat foundation that bridges the soft spots. The key is matching the foundation type to the actual stratigraphy, not to a generic assumption about what Laredo soil "should" look like.

Shallow Foundation Design in Laredo, TX — Technical reference — Laredo

Site-specific factors

We see it on remodels along San Bernardo Avenue repeatedly: an old slab-on-grade with hairline cracks that nobody worried about, and then a new steel-framed addition goes up on a footing only 2 feet deep. Within two rainy seasons the joint between old and new opens half an inch. The culprit is differential heave. Laredo's clay subgrade can exert swell pressures over 5,000 psf when wetted, and shallow footings that don't penetrate the active zone just ride the moisture wave. The other silent risk is undocumented fill. Decades of grading along Chacon Creek left pockets of debris and loose soil that look fine on a backhoe pit but consolidate unevenly under load. A shallow foundation design in Laredo that skips verification borings and lab swell testing is gambling with a repair bill that dwarfs the cost of the investigation.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering1.org

Regulatory framework

IBC 2021 Chapter 18: Soils and Foundations, ASCE 7-22: Minimum Design Loads for Buildings, ASTM D1586: Standard Penetration Test (SPT), ASTM D2487: Unified Soil Classification System, ASTM D4829: Expansion Index of Soils, City of Laredo Building Standards, Division 18-4

Typical values

Parameter	Typical value
Typical bearing depth (residential)	18 to 36 inches below finished grade
Allowable bearing pressure (caliche/weathered shale)	3,000 to 5,000 psf
Allowable bearing pressure (alluvial clay)	1,500 to 2,500 psf depending on PI
Maximum total settlement target	1 inch for spread footings per IBC
Differential settlement limit	1/2 inch over 30 feet of span
Swelling potential classification	ASTM D4829 Expansion Index
Common reinforcement grade	Grade 60 deformed bars per ASTM A615

Common questions

What does a shallow foundation design package cost in Laredo?

For a typical commercial lot under 10,000 square feet, the combined field investigation, lab testing, and foundation design report runs between US$1,800 and US$3,120, depending on the number of borings and the complexity of the soil profile.

How deep do footings need to be in Laredo's expansive clay?

There's no single number, but most residential footings we design reach 24 to 36 inches. On high-PI Beaumont clay we often go to 48 or even 60 inches to get below the active zone, paired with a capillary break of clean sand or gravel.

Do you handle the City of Laredo permit submittal?

Yes. Every report includes the sealed foundation drawings and geotechnical letter the City requires under IBC Chapter 18. We respond to plan reviewer comments and can attend pre-construction meetings if needed.

Can you design a mat foundation instead of deep piles?

In many cases, yes. If the bearing stratum lies within 8 to 10 feet and the loads are moderate, a stiffened mat can eliminate the cost and vibration of driven piles. We evaluate both options and present a cost-benefit comparison so the owner can decide.
