Grain Size Analysis (Sieve + Hydrometer) for Laredo Soils

Laredo sits on the Rio Grande floodplain where alluvial deposits dominate the subsurface. The soil profile shifts from silty clays to fine sands within a few feet. A standard sieve alone misses the silt and clay fraction that controls drainage and swell potential. We run the full grain size analysis with hydrometer on every sample from this region. The Atterberg limits testing often follows to confirm plasticity of the fines, especially in the Montaña neighborhood where fat clays appear at shallow depth. Laredo's semiarid climate with 20 inches of annual rain creates cyclic wetting and drying that activates the fines content. Without the hydrometer data, the USCS classification is incomplete. The lab runs ASTM D422 and ASTM D2487 protocols daily. We report percent gravel, sand, silt, and clay plus the coefficient of uniformity. These numbers feed directly into foundation design for the expanding industrial parks along I-35 and the residential subdivisions pushing north toward the Webb County line.

Missing the hydrometer on a Laredo silty sand can misclassify the soil by two USCS groups and underestimate settlement by 30 percent.

Our service areas

Methodology and scope

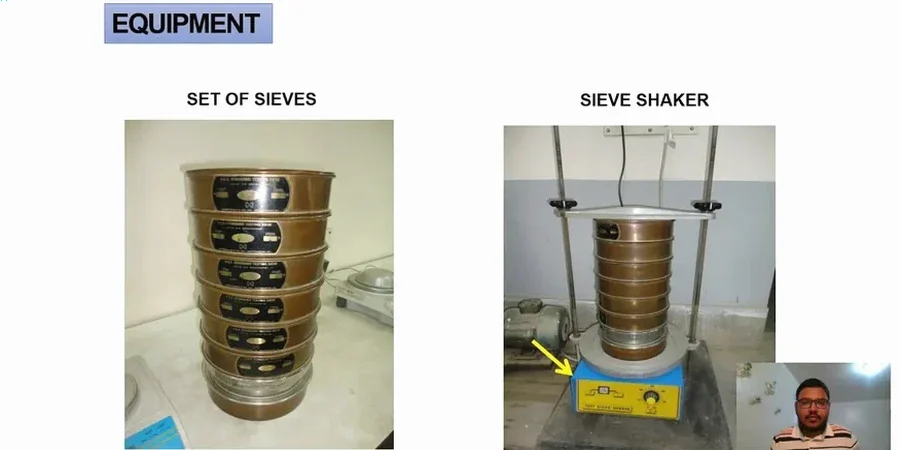

A common mistake in Laredo is classifying a silty sand as clean sand because the technician skips the hydrometer. That error leads to overestimating permeability by a factor of ten. The hydrometer captures the sub-75-micron fraction that sieves cannot separate. We use sodium hexametaphosphate as dispersant per ASTM D422. The sedimentation cylinder reads at 2, 5, 15, 30, 60, 250, and 1440 minutes. Temperature correction is applied to every reading. For road base and structural fill, the percent passing the No. 200 sieve determines whether the material meets TxDOT specifications. A CBR road test complements the gradation curve when the material is destined for pavement subgrade. Our lab in South Texas processes over 40 gradation samples per week. Each report includes the full particle size distribution curve, D10, D30, D60, Cu, and Cc values. The classification follows USCS with group symbol and group name per ASTM D2487. Dual symbols like SP-SM or CL-ML are common in the Laredo formation where transitional soils dominate.

Grain Size Analysis (Sieve + Hydrometer) for Laredo Soils — Technical reference — Laredo

Site-specific factors

A warehouse foundation on Mines Road was designed assuming a well-graded gravel based on a sieve-only report. The hydrometer later revealed 22 percent clay content. The clay fraction held water after the summer monsoons. Differential movement cracked the slab within two years. The repair cost exceeded the original foundation budget. In Laredo's expansive clay zones, the percent passing the No. 200 sieve is the single most critical number on the gradation report. Overlooking it triggers a cascade of design errors: undersized footings, inadequate slab reinforcement, and poor drainage detailing. The IBC Chapter 18 and ASCE 7 require complete soil classification for seismic site class determination. Site class E or F soils, common in the Rio Grande Valley, demand higher design spectral accelerations. The grain size distribution curve feeds directly into liquefaction susceptibility screening. Fine sands with less than 15 percent fines are most vulnerable. The hydrometer quantifies that fines content precisely.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering1.org

Regulatory framework

ASTM D422 – Standard Test Method for Particle-Size Analysis of Soils, ASTM D2487 – Standard Practice for Classification of Soils for Engineering Purposes (USCS), ASTM D1140 – Standard Test Methods for Amount of Material Finer than 75-μm Sieve, ASCE 7 – Minimum Design Loads for Buildings (seismic site class), IBC Chapter 18 – Soils and Foundations

Typical values

Parameter	Typical value
Test standard	ASTM D422 / ASTM D2487
Sample mass required	500 g for fine soils, 5 kg for granular
Sieve range	3 in to No. 200 (75 mm to 75 μm)
Hydrometer type	ASTM 152H, readings at 0-24 hr sedimentation
Dispersant	Sodium hexametaphosphate (40 g/L solution)
Coefficients reported	Cu (uniformity), Cc (curvature)
USCS classification	Group symbol + group name per ASTM D2487
Report turnaround	24 hours standard, 4 hours expedited

Common questions

What is the cost of a grain size analysis with hydrometer in Laredo?

A complete sieve plus hydrometer analysis ranges from US$100 to US$210 per sample depending on whether we run the full sedimentation curve or just the percent passing No. 200. Volume pricing applies for projects with more than 10 samples.

How long does the hydrometer test take?

The sedimentation portion runs a minimum of 24 hours to capture the clay fraction. We read at standard intervals: 2, 5, 15, 30, 60, 250, and 1440 minutes. The full combined report is ready within 24 to 48 hours from sample receipt. Expedited 4-hour turnaround is available for time-sensitive projects.

Why is the hydrometer necessary if I already have sieve results?

The sieve stops at the No. 200 mesh which is 75 microns. Everything finer, silt and clay, passes through. The hydrometer quantifies the silt-versus-clay split by measuring sedimentation velocity in a water column. Without this data, you cannot assign a correct USCS group symbol, determine frost susceptibility, or assess liquefaction potential. In Laredo's alluvial soils, the fines content often controls the engineering behavior.
