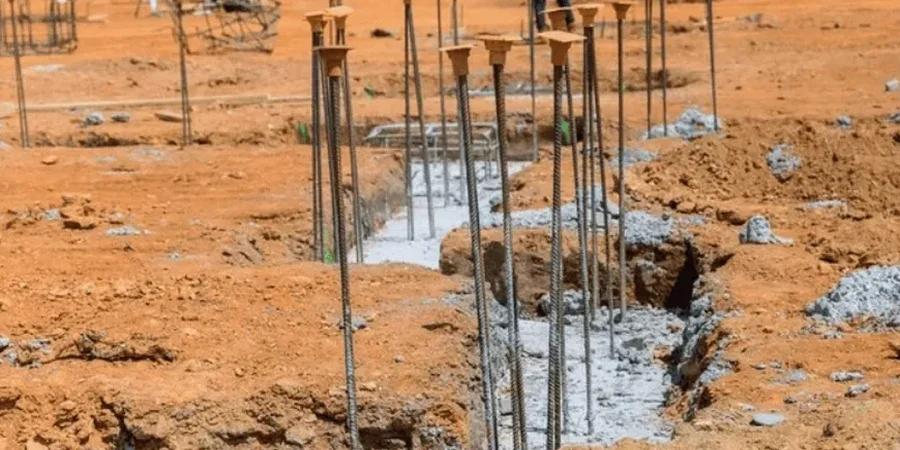

Pile Foundation Design for South Texas Soils

Q: What is the typical cost range for a pile foundation design in Laredo?

For a typical commercial or light industrial project in the Laredo area, the fee for a complete pile foundation design package—including site investigation, lab testing, and the engineering report—usually falls between US$1,660 and US$6,220. The spread depends on the number of borings, the depth of the exploration, and whether load testing is required.

Q: How deep do piles need to go in the Laredo area to reach adequate bearing?

It depends on the proximity to the river and the specific formation, but in many parts of Laredo, the competent Yegua shale is encountered between 5 and 15 meters below ground surface. We design piles to either bear on this shale or to develop sufficient skin friction within the overlying alluvium, whichever provides a more efficient solution for the structural loads.

Q: Do I need a pile foundation for a single-story building, or is a shallow foundation acceptable?

Not always. For lightly loaded structures on the better-drained terraces west of I-35, a properly designed shallow footing can work. But if the soil survey shows expansive clays with a high plasticity index (PI over 25), a pile foundation—or at least a stiffened slab on grade—is worth evaluating to avoid long-term cracking and differential movement.

A few months ago we got called out to a site just off the Bob Bullock Loop. The contractor was ready to pour a mat foundation for a mid-rise, but the preliminary borings kept showing soft, fat clay down to about 18 feet. Switching to a pile foundation design was the obvious call, but it changed everything: the load path, the pile cap layout, the interaction with the stiff formation underneath. Laredo's subsurface is tricky like that. The Rio Grande alluvium and the weathered shale of the Yegua formation create abrupt transitions that a standard shallow footing just can't handle. That's where a proper deep foundation analysis comes in—not just plugging numbers into a formula, but interpreting the skin friction and end bearing values in the context of actual local geology. It's the difference between a foundation that settles predictably and one that keeps you awake at night.

A pile foundation is only as good as the friction values you assign to the local geology.

Our service areas

Methodology and scope

The semi-arid climate here plays a bigger role than most people think. Laredo's average annual rainfall is modest—around 20 inches—but when it rains, it pours, and the clay layers swell and shrink dramatically. A pile design has to account for the potential for negative skin friction when the upper soils dry out and contract, pulling downward on the pile shaft. We evaluate this using site-specific Atterberg limits and moisture content profiles. For a recent warehouse out near the World Trade Bridge, we combined our pile foundation design with in-situ permeability testing to model how water moves through the layered silts, because a perched water table can change the effective stress regime overnight. The analysis isn't just about capacity—it's about long-term performance under these cyclic moisture conditions.

Pile Foundation Design for South Texas Soils — Technical reference — Laredo

Site-specific factors

We run the pile load tests out here with a reaction frame and a hydraulic jack, usually anchored against a set of adjacent reaction piles or a heavy dead weight. In Laredo, the biggest headache isn't the equipment—it's the heat. Summer temperatures routinely hit 105°F, and that can mess with the load cell calibration and the dial gauge readings if you're not careful. We always shade the instrumentation and take readings early in the morning during July and August. The other risk that doesn't get talked about enough is the variability of the fill material near the old river terraces. You can have a dense gravel lens two feet thick that wasn't caught in the boring, and suddenly your pile tip is sitting on a false bearing stratum. That's why every pile foundation design we produce includes a contingency for pile driving analyzer (PDA) testing and a clear protocol for what happens when the refusal depth doesn't match the geotechnical model.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering1.org

Regulatory framework

IBC 2021 Section 1810 - Deep Foundations, ASCE 7-22 Minimum Design Loads, ASTM D1586 Standard Penetration Test, ASTM D2487 Soil Classification, ASTM D1143 Deep Foundation Load Test

Typical values

Parameter	Typical value
Ultimate Skin Friction (Clay)	40 to 70 kPa (8.4 to 14.6 ksf) based on undrained shear strength
End Bearing Capacity (Shale)	Nq values applied to Yegua formation bedrock, typically 1.5 to 4.0 MPa
Negative Skin Friction Zone	Upper 3 to 5 meters where expansive clays dominate
Settlement Criteria	Total settlement < 25 mm, differential < 10 mm per IBC
Lateral Load Analysis	p-y curves generated per Lpile methodology for drilled shafts
Design Factor of Safety	FS = 2.5 for compression, FS = 3.0 for uplift conditions

Common questions

What is the typical cost range for a pile foundation design in Laredo?

For a typical commercial or light industrial project in the Laredo area, the fee for a complete pile foundation design package—including site investigation, lab testing, and the engineering report—usually falls between US$1,660 and US$6,220. The spread depends on the number of borings, the depth of the exploration, and whether load testing is required.

How deep do piles need to go in the Laredo area to reach adequate bearing?

It depends on the proximity to the river and the specific formation, but in many parts of Laredo, the competent Yegua shale is encountered between 5 and 15 meters below ground surface. We design piles to either bear on this shale or to develop sufficient skin friction within the overlying alluvium, whichever provides a more efficient solution for the structural loads.

Do I need a pile foundation for a single-story building, or is a shallow foundation acceptable?

Not always. For lightly loaded structures on the better-drained terraces west of I-35, a properly designed shallow footing can work. But if the soil survey shows expansive clays with a high plasticity index (PI over 25), a pile foundation—or at least a stiffened slab on grade—is worth evaluating to avoid long-term cracking and differential movement.
